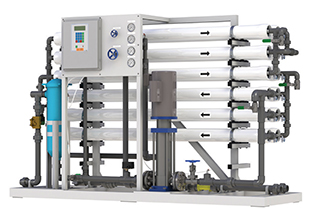

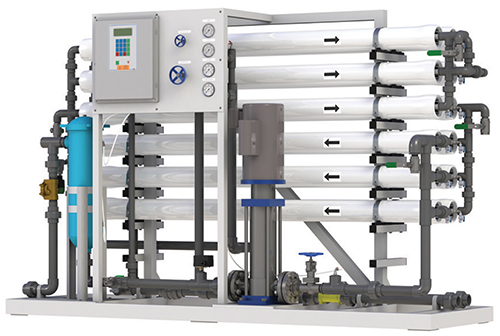

M1– SERIES REVERSE OSMOSIS SYSTEMS

AXEON® M1– Series Reverse Osmosis Systems are designed for overall superior performance, high recovery rates, minimal energy consumption and offer great savings with low maintenance and low operation costs.

The M1– Series Reverse Osmosis Systems range in capacities from 12,000 to 36,000 gallons per day. To achieve higher recovery rates, each base model includes a concentrate recycle loop. These systems can be upgraded with features such as a variable frequency drive, digital instrumentation, a chemical feed system, blending valve and a permeate divert valve.


Benefits
  • Fully Equipped and Customizable
  • Skid Mounted
  • Components Easily Accessible
  • Pre-Plumbed, Wired and Assembled
  • Individually Tested and Preserved
  • Low Operation and Maintenance Costs
  • Easy Maintenance and Servicing
  • 20% Less Energy than Standard Membranes
  • 1-Year Limited Warranty
FEATURES

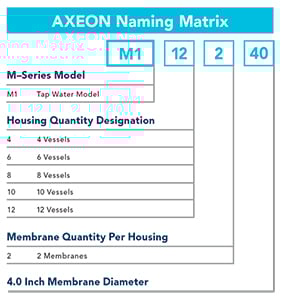

Models: M1– 4240, M1– 6240, M1–8240

  • S –150 Computer Controller
    • LCD Backlit Display
    • Pre-Treatment Lockout
    • Tank Level Input
  • Low and High Pressure Monitoring and Alarm
  • Hour Meter
  • Feed Flush

Models: M1–10240, M1–12240

  • S – 200 Computer Controller
    • LCD Backlit Display
    • Pre-Treatment Lockout
    • Tank Level Input
    • Low Pressure Monitoring and Alarm
    • Hour Meter
    • Dual TDS Monitoring
    • Feed Flush
    • Digital Flow Meters (3)
    • Rejection Percentage
    • Recovery Percentage
  • AXEON Permeate and Concentrate Flow MetersA
  • AXEON Concentrate Recycle Flow MeterA
  • Stainless Steel Concentrate Globe Valve
  • AXEON Pre-Filter 0-100 psi Panel Mounted Glycerin Filled Gauges
  • AXEON Pump Discharge and Concentrate 0-300 psi Panel Mounted Glycerin Filled Gauges
  • Pentair® Bag Filter Housing
  • AXEON 5-Micron Filter Bag
  • AXEON HF5–Series Ultra Low Energy Membrane Elements
  • AXEON Bag Filter Housing with Stainless Steel Stand
  • AXEON FRP– Series Membrane Housings (300 psi)
  • Vertical Multi-Stage Stainless Steel Booster Pump
  • Feed Solenoid Valve
  • Feed Low Pressure Switch
  • Clean-In-Place (CIP) Ports
  • Permeate Sample Ports
  • White Powder Coated Aluminum Frame
  • Wooden Shipping Crate
OPTIONS AND UPGRADES
  • S –150 Expander Board A
  • S –150 Dual TDS Board A
  • S – 200 Computer Controller A
  • AXEON NF3 – Series Nanofiltration Membrane Elements
  • AXEON NF4 – Series Nanofiltration Membrane Elements
  • Hanna® BL 982411 ORP Meter A
  • Hanna® BL 981411 pH Meter A
  • S – 200 ORP Monitoring A
  • S – 200 pH Monitoring A
  • Chemical Pump Outlet
  • Blending Valve
  • High Pressure Tank Switch
  • Pump Pressure Relief Valve B
  • Caster Wheels
  • Permeate Divert Valve
  • Variable Frequency Drive

A. Only available on the following models: M1–4240, M1–6240, M1–8240

B. Standard for all 50Hz Systems


ARRAY SPECIFICATIONS
MODELS Vessel Array Vessel Size Vessel Quantity Membrane Size Membrane Quantity
M2– 4240 2:2 4080 4 4040 8
M2– 6240 2:2:2 4080 6 4040 12
M2– 8240 3:3:2 4080 8 4040 16
M2–10240 3:3:2:2 4080 10 4040 20
M2–12240 3:3:2:2:2 4080 12 4040 24
SPECIFICATIONS
MODELS M1– 4240 M1– 6240 M1– 8240 M1–10240 M1–12240
Design
Configuration Single Pass Single Pass Single Pass Single Pass Single Pass
Feedwater Source C TDS < 2,000 ppm TDS < 2,000 ppm TDS < 2,000 ppm TDS < 2,000 ppm TDS < 2,000 ppm
Standard Recovery Rate % 50-75 50-75 50-75 50-75 60-75
Rejection and Flow RatesD
Nominal Salt Rejection % 98.5 98.5 98.5 98.5 98.5
Permeate Flow (gpm / lpm) 8.30 / 31.42 12.50 / 47.32 16.70 / 63.22 20.80 / 78.74 25.00 / 94.63
Minimum Concentrate Flow (gpm / lpm) 14.30 / 54.00 18.50 / 70.00 22.70 / 85.93 26.80 / 101.45 31.00 / 117.35
Maximum Feed Flow (gpm / lpm) 28 / 106 28 / 106 42 / 159 42 / 159 42 / 159
Minimum Concentrate Flow (gpm / lpm) 6.00 / 22.70 6.00 / 22.70 6.00 / 22.70 6.00 / 22.70 6.00 / 22.70
Connections
Feed (in) 1.5 FNPT 1.5 FNPT 1.5 FNPT 1.5 FNPT 1.5 FNPT
Permeate (in) 1 FNPT 1 FNPT 1 FNPT 1.5 FNPT 1.5 FNPT
Concentrate (in) 1 FNPT 1 FNPT 1 FNPT 1.5 FNPT 1.5 FNPT
CIP (in) 1 FNPT 1 FNPT 1 FNPT 1 FNPT 1 FNPT
Membranes
Membrane Per Vessel 2 2 2 2 2
Membrane Quantity 8 12 16 20 24
Membrane Size 4040 4040 4040 4040 4040
Vessels
Vessel Array 2:2 2:2:2 3:3:2 3:3:2:2 3:3:2:2:2
Vessel Quantity 4 6 8 10 12
Pumps
Pump Type Multi-Stage Multi-Stage Multi-Stage Multi-Stage Multi-Stage
Motor HP 3 3 5 7.5 7.5
RPM at 60 Hz 3450 3450 3450 3450 3450
RPM at 50 Hz 2900 2900 2900 2900 2900
System Electrical
Standard Voltage + Amp Draw 220V, 60Hz, 3PH, 9AE 220V, 60Hz, 3PH, 9AC 220V, 60Hz, 3PH, 14.2A 220V, 60Hz, 3PH, 19.5AC 220V, 60Hz, 3PH, 19.5AC
High Voltage Service + Amp Draw 220V, 50Hz, 3PH, 10.6AE
460V, 60Hz, 3PH, 5AE		 220V, 50Hz, 3PH, 10.6AE
460V, 60Hz, 3PH, 5AE		 220V, 50Hz, 3PH, 16.1AE
460V, 60Hz, 3PH, 7AE		 220V, 50Hz, 3PH, 16.1AE
460V, 60Hz, 3PH, 7AE		 220V, 50Hz, 3PH, 16.1AE
460V, 60Hz, 3PH, 9.7AE

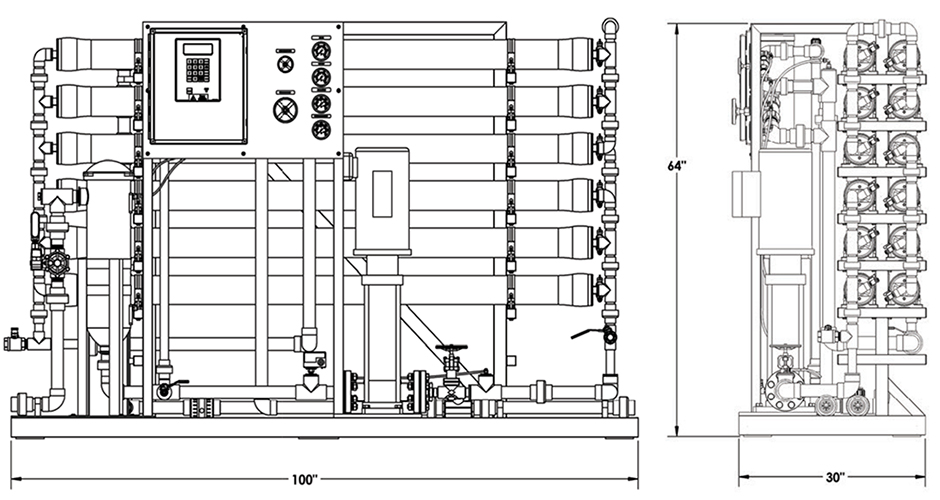

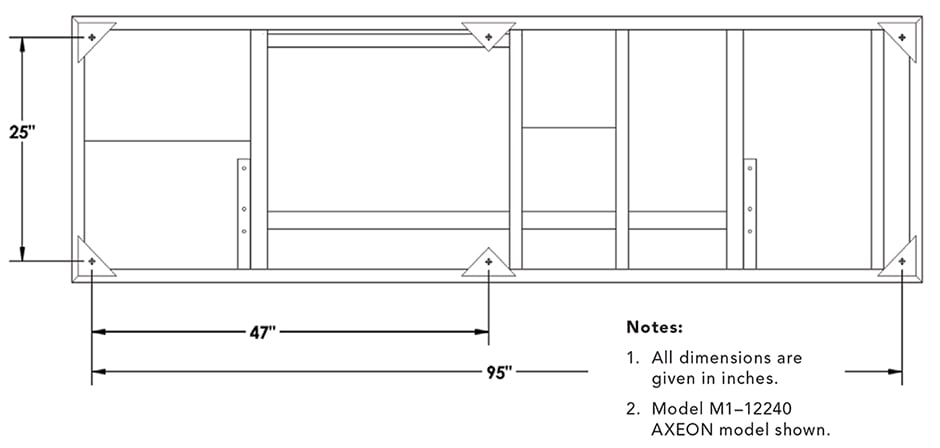

System Dimensions
Approximate Dimensions F L x W x H (in /cm) 31 x 100 x 64 / 787.4 x 254 x 162.56 31 x 100 x 64 / 787.4 x 254 x 162.56 31 x 100 x 64 / 787.4 x 254 x 162.56 31 x 100 x 64 / 787.4 x 254 x 162.56 31 x 100 x 64 / 787.4 x 254 x 162.56
Approximate Weight (lbs / kg) 1060 / 480.81 1150 / 476.27 1260 / 571.53 1350 / 612.35 1450 / 657.71

Test Parameters: : 550 TDS Filtered (5–Micron), Dechlorinated, Municipal Feedwater, 65 psi / 4.50 bar Feed Pressure, 80 psi / 5.5 bar Operating Pressure, 77°F / 25°C, Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation

C. Low temperatures and feedwater quality, such as high TDS levels will significantly affect the systems production capabilities and performance. Computer projections must be run for individual applications which do not meet or exceed minimum and maximum operating limits for such conditions.
D. Product flow and standard recovery rates are based on feedwater conditions as stated above. Do not exceed the recommended permeate flow.
E. Varies with motor manufacturer.
F. Does not include operating space requirements.

OPERATING LIMITSG
Maximum Feed Temperature (°F / °C) 85 / 29 Maximum Turbidity (NTU) 1
Maximum Feed Temperature (°F / °C) 40 / 5 Maximum Free Chlorine (ppm) 0
Maximum Ambient Temperature (°F / °C) 120 / 49 Maximum TDS (ppm) 2,000
Minimum Ambient Temperature (°F / °C) 40 / 4 Maximum Hardness (gpg) 0
Maximum Feed Pressure (psi / bar) 85 / 6 Maximum pH (continuous) 11
Minimum Feed Pressure (psi / bar) 45 / 3 Maximum pH (continuous) 2
Maximum Operating Pressure (psi / bar) 200 / 14 Minimum pH (cleaning 30 minutes) 13
Maximum SDI Rating < 3 Minimum pH (cleaning 30 minutes) 1

G. If any of the feed water parameters are not within the limits given, consult your local dealer or distributor for assistance.
