M2–12240
Reverse Osmosis System
Product Images
Download Images

M2–SERIES REVERSE OSMOSIS SYSTEMS

AXEON® M2– Series Reverse Osmosis Systems are a line of high capacity systems with flows ranging from 12,000 to 36,000 gallons per day. These systems are ideal for removing the salt content in well water and surface water for use in commercial and light industrial applications. Using an efficient high pressure pump, the M2– Series systems are engineered for treating brackish water with levels of 10,000 ppm.

M2– Series Reverse Osmosis Systems feature a computer controller that has dual TDS monitoring, low pressure monitoring and alarm, pretreatment lockout, and feed flush and tank level input while larger models include an additional digital flow monitor. All models include low energy reverse osmosis membrane elements, motorized feed valve, permeate sample ports and a bag filter housing with a 5-Micron filter bag.

Some options available for the M2-Series include permeate flush, permeate divert, variable frequency drive, chemical injection system and clean-in-place system.


BENEFITS
  • Fully Equipped and Customizable
  • Skid Mounted
  • Components Easily Accessible
  • Pre-Plumbed, Wired and Assembled
  • Individually Tested and Preserved
  • Low Operation and Maintenance Costs
  • Easy Maintenance and Servicing
  • 20% Less Energy
  • 1-Year Limited Warranty
FEATURES

Models: M2– 4240, M2– 6240, M2– 8240

  • S–150 Computer Controller
    • LCD Backlit Display
    • Pre-Treatment Lockout
    • Tank Level Input
    • Hour Meter
    • Low and High Pressure Monitoring and Alarm
    • Dual TDS Monitoring
    • Feed Flush
    • Rejection Percentage

Models: M2–10240, M2–12240 (continued)

  • George Fisher® Motorized Valve
  • Feed Low Pressure Switch
  • Pump High Pressure Switch
  • Clean-In-Place (CIP) Ports
  • Victaulic® Style Fittings
  • Permeate Sample Ports
  • High Pressure Stainless Steel Piping and Fittings
  • White Powder Coated Aluminum Frame
  • Wooden Shipping Crate

Models: M2– 10240, M2–12240

  • S–200 Computer Controller
    • LCD Backlit Display
    • Pre-Treatment Lockout
    • Tank Level Input
    • Low and High Pressure Monitoring and Alarm
    • Hour Meter
    • Dual TDS Monitoring
    • Feed Flush
    • Digital Flow Meters (2)
    • Rejection Percentage
    • Recovery Percentage
  • AXEON Permeate and Concentrate Flow MetersA
  • Stainless Steel Concentrate Globe Valve
  • AXEON Pre-Filter 0-100 psi Panel Mounted Glycerin Filled Gauges
  • AXEON Pump Discharge 0-600 psi Panel Mounted Glycerin Filled Stainless Steel Gauges
  • Pentair® 5-Micron Filter Bag
  • Pentair® Bag Filter Housing
  • AXEON FRP– Series Membrane Housings (450 psi)
  • Vertical Multi-Stage 316L Stainless Steel Booster Pump
  • Filmtec® LCLE Membrane Elements
  • A. Only available on the following models: M1– 4240, M1– 6240, M1– 8240
  • B. Standard for all 50Hz Systems
OPTIONS AND UPGRADES

Models: M2–4240, M2–6240, M2–8240

  • S –150 Expander BoardA
  • S – 200 Computer ControllerA
  • S – 200 pH MonitoringA
  • S – 200 ORP MonitoringA
  • Variable Frequency DriveB
  • Filmtec ® LCHR Membrane Elements
  • High Pressure Tank Switch
  • Hanna® BL 981411 pH ControllerA
  • Hanna® BL 982411 ORP ControllerA
  • Chemical Pump Outlet
  • Blending Valve
  • Permeate Divert Valve
  • Pump Pressure Relief ValveB
  • Caster Wheels

Notes:

  • 1. All dimensions are given in inches.
  • 2. Model M2–12240 AXEON model shown

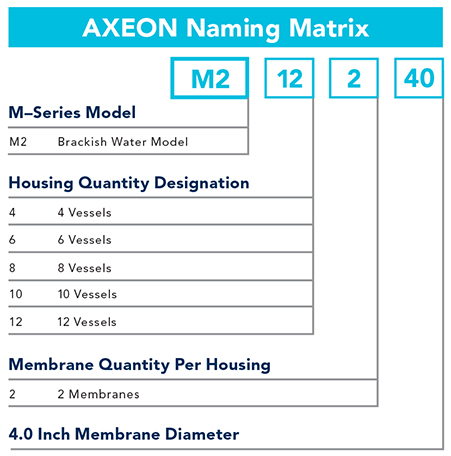

ARRAY SPECIFICATIONS
Model Vessel Array Vessel Size Vessel Quantity Membrane Size Membrane Quantity
M2– 4240 2:2 4080 4 4040 8
M2– 6240 2:2:2 4080 6 4040 12
M2– 8240 3:3:2 4080 8 4040 16
M2–10240 3:3:2:2 4080 10 4040 20
M2–12240 3:3:2:2:2 4080 12 4040 24
SPECIFICATIONS
MODELS M2– 4240 M2– 6240 M2– 8240 M2–10240 M2–12240
Design
Configuration Single Pass Single Pass Single Pass Single Pass Single Pass
Feedwater SourceA TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm
Standard Recovery Rate % 40-50 40-50 40-50 30-45 46-52
Rejection and Flow RatesD
Nominal Salt Rejection % 99.2 99.2 99.2 99.2 99.2
Permeate Flow F (gpm / lpm) 8.30 / 31.41 12.50 / 47.31 16.70 / 63.21 20.80 / 78.74 25.00 / 94.63
Minimum Concentrate Flow Rate (gpm / lpm) 14.30 / 54.13 18.50 / 70.03 22.70 / 85.93 26.80 / 101.45 31.00 / 117.35
Maximum Feed Flow (gpm / lpm) 28 / 106 28 / 106 42 / 159 42 / 159 42 / 159
Minimum Concentrate Flow Rate (gpm / lpm) 6 / 23 6 / 23 6 / 23 6 / 23 6 / 23
Connections
Feed FNPT (in) 1.5 1.5 1.5 1.5 1.5
Permeate Tubing (in) 1 1 1 1.5 1.5
Concentrate FNPT (in) 1 1 1 1.5 1.5
CIP FNPT (in) 1 1 1 1 1
Membranes
Membranes Per Vessel 2 2 2 2 2
Membrane Quantity 8 12 16 20 24
Membrane Size 4040 4040 4040 4040 4040
Vessels
Vessel Array 2:2 2:2:2 3:3:2 3:3:2:2 3:3:2:2:2
Vessel Quantity 4 6 8 10 12
Pumps
Pump Type Multi-Stage Multi-Stage Multi-Stage Multi-Stage Multi-Stage
Motor HP 7.5 7.5 10 10 15
RPM @ 60Hz 3450 3450 3450 3450 3450
RPM @ 50Hz VFD at 60Hz VFD at 60Hz VFD at 60Hz VFD at 60Hz VFD at 60Hz
System Electrical
Standard Voltage + Amp Draw 220V, 60Hz, 3PH, 19.5AE 220V, 60Hz, 3PH, 19AE 220V, 60Hz, 3PH, 26.6AE 220V, 60Hz, 3PH, 26.6AE 220V, 60Hz, 3PH, 36AE
High Voltage Service + Amp Draw 220V, 50Hz, 3PH, 22.9AE
460V, 60Hz, 3PH, 9.7AE 		220V, 50Hz, 3PH, 22.9AE
460V, 60Hz, 3PH, 9.7AE 		220V, 50Hz, 3PH, 30.9AE
460V, 60Hz, 3PH, 12.9AE 		220V, 50Hz, 3PH, 30.9AE
460V, 60Hz, 3PH, 12.9AE 		220V, 50Hz, 3PH, 45AE
460V, 60Hz, 3PH, 18.5AE
System Dimensions
Approximate Dimensions F L x W x H (in /cm) 31 x 100 x 64 / 787.4 x 2540 x 1626 31 x 100 x 64 / 787.4 x 2540 x 1626 31 x 100 x 64 / 787.4 x 2540 x 1626 31 x 100 x 64 / 787.4 x 2540 x 1626 31 x 100 x 64 / 787.4 x 2540 x 1626
Approximate Weight (lbs/Kg) 1260 / 572 1350 / 611 1460 / 662 1550 / 703 1650 / 748

Test Parameters: 10,000 TDS Filtered (5-Micron), Dechlorinated, Municipal Feedwater, 65 psi / 4.50 bar Feed Pressure, 350 psi / 24.13 bar Operating Pressure, 77°F / 25°C, Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation.

C. Low temperatures and feedwater quality, such as high TDS levels will significantly affect the systems production capabilities and performance. Computer projections must be run for individual applications which do not meet or exceed minimum and maximum operating limits for such conditions.
D. Product flow and maximum recovery rates are based on feedwater conditions as stated above. Do not exceed recommended permeate flow.
E. Varies with motor manufacturer
F. Does not include operating space requirements.

OPERATING LIMITS E
Maximum Feed Temperature (°F / °C) 85 / 29 Maximum Turbidity (NTU) 1
Maximum Feed Temperature (°F / °C) 40 / 4 Maximum TDS (ppm) 0
Maximum Ambient Temperature (°F / °C) 120 / 49 Maximum TDS (ppm) 10,000
Minimum Ambient Temperature (°F / °C) 40 / 4 Maximum Hardness (gpg) 0
Maximum Feed Pressure (psi / bar) 85 / 6 Maximum pH (continuous) 11
Minimum Feed Pressure (psi / bar) 45 / 3 Minimum pH (continuous) 2
Maximum Operating Pressure (psi / bar) 400 / 28 Maximum pH (cleaning 30 minutes) 13
Maximum Feed Silt Density Index (SDI) < 3 Minimum pH (cleaning 30 minutes) 1

G. System pressure is variable due to water conditions. Permeate flow will increase at a higher temperature and will decrease at a lower temperature.
