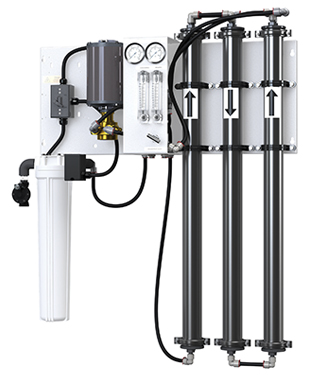

HT– SERIES WALL MOUNT REVERSE OSMOSIS SYSTEMS

AXEON® HT– Series Wall Mount Reverse Osmosis Systems are designed for easy filter and membrane servicing and are available in four models ranging in production capacities from 500 to 2,000 gallons per day. The HT– Series models are equipped with our unique EZMount™ two-piece wall mounting system for easy installation. An optional mobile stand is also available to convert any of the HT– Series models into floor standing systems.


FEATURES

  • Manual On and Off Control Switch
  • AXEON HF1– Series Low-Energy Membranes
  • AXEON 5-Micron Sediment Pre-Filter
  • SS –Series Membrane Housings
  • Pentair® 20" Slim Line Cartridge Housing
  • Fluid-O-Tech™ Low Lead Brass Rotary Vane High Pressure Pump
  • Feed Low Pressure Switch
  • GC® Feed Solenoid Valve
  • 316L Stainless Steel Concentrate Valve
  • Permeate and Concentrate Flow Meters
  • Glycerin-Filled Pre-Filter Pressure Gauge (0-100 psi)
  • Glycerin-Filled Pump Pressure Gauge (0-300 psi)
  • ODP High Efficiency Carbonator Motor
  • John Guest® Push/Pull Fittings with Locking Safety Clips
  • White Powder Coated Aluminum Frame

OPTIONS

  • Minitrol Computer Controller
  • Minitrol IF Computer Controller with Feed Flush
  • AXEON HF4 – Series Extra Low Energy Membrane Elements
  • AXEON HF5 – Series Ultra Low Energy Membrane Elements
  • FRP– Series Membrane Housings
  • Fluid-O-TechTM Stainless Steel Rotary Vane Pump
  • Chemical Pump Outlet
  • Concentrate Recycle Valve with Flow Meter
  • High Pressure Tank Switch
  • HM DigitalTM PSC–150 TDS/Conductivity Controller
  • Optional Mobile Stand

SPECIFICATIONS

MODELS HT– 500 HT–1000 HT–1500 HT–2000
Design
Configuration Single Pass Single Pass Single Pass Single Pass
Feedwater Source (ppm)A TDS < 2000 TDS < 2000 TDS < 2000 TDS < 2000
Standard Recovery Rate % 26 41 41 63
Flow RatesB
Permeate Flow (gpm / lpm) 0.35 / 1.32 0.69 / 2.61 1.04 / 3.93 1.38 / 5.22
Minimum Feed Flow (gpm / lpm) 1.35 / 5.11 1.69 / 6.40 2.04 / 7.72 2.35 / 8.89
Minimum Concentrate Flow (gpm / lpm) 1 / 3.78 1 / 3.78 1 / 3.78 1 / 3.78
Connections
Feed (in) 3/4 FNPT 3/4 FNPT 3/4 FNPT 3/4 FNPT
Permeate (in) 3/8 QC 3/8 QC 3/8 QC 3/8 QC
Concentrate (in) 3/8 QC 3/8 QC 3/8 QC 3/8 QC
Membranes
Membrane Per Vessel 1 1 1 1
Membrane Quantity 2 3 2 3
Membrane Size 2521 2521 2540 2540
Nominal Salt Rejection % 99 99 99 99
Vessels
Vessel Array 1:1 1:1:1 1:1 1:1:1
Vessel Quantity 2 3 2 3
Pumps
Pump Type Rotary Vane 401 Brass Rotary Vane 601 Brass Rotary Vane 601 Brass Rotary Vane 1001 Brass
Motor HP 1/3 1/2 3/4 3/4
RPM @ 60Hz 1725 (1465) 1725 (1465) 1725 (1465) 1725 (1465)
System Electrical
Standard Voltage + Amp DrawC 110V, 60Hz, 1PH, 6.6 A 110V, 60Hz, 1PH, 8.2 A 110V, 60Hz, 1PH, 11.0A 110V, 60Hz, 1PH, 11.0A
High Voltage Service + Amp DrawC 220V, 60Hz, 1PH, 3.2A
220V, 50Hz, 1PH, 3.2A 		220V, 60Hz, 1PH, 3.9A
220V, 50Hz, 1PH, 3.9A		 220V, 60Hz, 1PH, 5.6A
220V, 50Hz, 1PH, 5.6A		 220V, 60Hz, 1PH, 5.6A
220V, 50Hz, 1PH, 5.6A
System Dimensions
Approximate Dimensions D L x W x H (in /cm) 39 x 10 x 42 /
99 x 25 x 107		 39 x 10 x 42 /
99 x 25 x 107		 39 x 10 x 47 /
99 x 25 x 119		 39 x 10 x 47 /
99 x 25 x 119
Approximate Weight (lbs / kg) 82 / 37.19 96 / 43.54 112 / 50.80 124 / 56.25

Test Parameters: : 550 TDS Filtered (5-Micron), Dechlorinated, Municipal Feedwater, 65 psi / 4.50 bar Feed Pressure, 150 psi / 10.35 bar Operating Pressure, 77°F / 25°C, Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation.

A. Low temperatures and feedwater quality, such as high TDS levels, will significantly affect the system's production capabilities and performance. Computer projections must be run for individual applications which do not meet or exceed minimum and maximum operating limits for such conditions.
B. Product flow and maximum recovery rates are based on feedwater conditions as stated above. Do not exceed recommended permeate flow.
C. Varies with motor manufacturer.
D. Does not include operating space requirements.

OPERATING LIMITSE

Maximum Feed Temperature (°F / °C) 85 / 29 Maximum Turbidity (NTU) 1
Maximum Feed Temperature (°F / °C) 40 / 4 Maximum TDS (ppm) 0
Maximum Ambient Temperature (°F / °C) 120 / 49 Maximum TDS (ppm) 2,000
Minimum Ambient Temperature (°F / °C) 40 / 4 Maximum Hardness (gpg) 0
Maximum Feed Pressure (psi / bar) 85 / 6 Maximum pH (continuous) 11
Minimum Feed Pressure (psi / bar) 45 / 3 Minimum pH (continuous) 2
Maximum Operating Pressure (psi / bar) 150 / 10 Maximum pH (cleaning 30 minutes) 13
Maximum SDI Rating < 3 Minimum pH (cleaning 30 minutes) 1

E. If any of the feed water parameters are not within the limits given, consult your local dealer or distributer for assistance.
