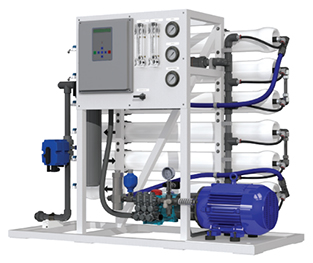

FEATURES
-
S –150 Computer Controller
- LCD Backlit Display
- Pre-Treatment Lockout
- Tank Level Input
- Low and High Pressure Monitoring and Alarm
- Permeate TDS Monitoring
- Hour Meter
- Feed Flush
- High Rejection Sea Water Membranes
- AXEON 5-Micron Filter Bag
- AXEON FRP– Series Membrane Housings (450 psi)
- Pentair® Single O-Ring Cartridge Housing
- Permeate and Concentrate Flow Meters
- GF® Motorized Valve PVC
- 0-100 psi Pre-Filter Out Pressure Gauge
- 0-1500 psi 316L – SS Concentrate Pressure Gauge
- AXEON 316L Stainless Steel Needle Valve
- SS Feed Low Pressure Switch
- SS Pump High Pressure Switch
- Pressure Relief Valve
- Pressure Regulator
- CAT® 316L High Pressure Pump
- TEFC Motor with Thermal Motor Protection
- White Powder Coated Aluminum Frame
- High Pressure 316L Stainless Steel Tubing and Fittings
- High Pressure Hose with Reusable SS Fittings
SPECIFICATIONS
| MODELS | T3 – 4140 | T3 – 5140 | T3 – 6140 |
|---|---|---|---|
| Design | |||
| Configuration | Single Pass | Single Pass | Single Pass |
| Feedwater SourceA | < 45,000 ppm | < 45,000 ppm | < 45,000 ppm |
| System Recovery with Recycle % | 27-48 | 27-48 | 27-48 |
| Rejection and Flow RatesB | |||
| Nominal Salt Rejection % | 99.4 | 99.4 | 99.4 |
| Permeate Flow Rate (gpm / lpm) | 2.70 / 10.22 | 3.47 / 13.13 | 4.80 / 18.17 |
| Minimum Concentrate Flow Rate (gpm / lpm) | 4.00 / 15.00 | 4.00 / 15.00 | 4.00 / 15.00 |
| Connections | |||
| Feed FNPT (in) | 1 FNPT | 1 FNPT | 1 FNPT |
| Permeate Tubing (in) | 1 FNPT | 1 FNPT | 1 FNPT |
| Concentrate Tubing (in) | 1 FNPT | 1 FNPT | 1 FNPT |
| Membranes | |||
| Membranes Per Vessel | 1 | 1 | 1 |
| Membrane Quantity | 4 | 5 | 6 |
| Membrane Size | 4040 | 4040 | 4040 |
| Vessels | |||
| Vessel Array | 1:1:1:1 | 1:1:1:1:1 | 1:1:1:1:1:1 |
| Vessel Quantity | 4 | 5 | 6 |
| Pumps | |||
| Pump Type | Piston | Piston | Piston |
| Motor HP | 7.5 | 7.5 | 7.5 |
| RPM @ 60Hz | 3600 | 3600 | 3600 |
| System Electrical | |||
| Controller | S –150 | S –150 | S –150 |
| High Voltage Service + Amp Draw | 220V, 3PH, 60Hz, 20AC | 220V, 3PH, 60Hz, 20AC | 220V, 3PH, 60Hz, 20AC |
| System Dimensions | |||
| Approximate Dimensions D L x W x H (in /cm) | 60 x 26 x 48.5 / 152.4 x 66.0 x 123.2 | 60 x 26 x 48.5 / 152.4 x 66.0 x 123.2 | 60 x 26 x 48.5 / 152.4 x 66.0 x 123.2 |
| Approximate Weight (lbs/Kg) | 270 / 122.47 | 300 / 136.08 | 330 / 149.68 |
Test Parameters: : 35,000 TDS Filtered (5-Micron), Dechlorinated, Municipal Feedwater, 65 psi / 4.50 bar Feed Pressure, 950 psi / 65.5 bar Operating Pressure, 77°F / 25°C, Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation.
A. Low temperatures and feedwater quality, such as high TDS levels will
significantly affect the systems production capabilities and performance.
Computer projections must be run for individual applications which do not
meet or exceed minimum and maximum operating limits for such conditions.
B. Product flow and maximum recovery rates are based on feedwater conditions
as stated above. Do not exceed recommended permeate flow.
C. Varies with motor manufacturer
D. Does not include operating space requirements.
OPERATING LIMITS E
| Design Temperature (°F / °C) | 77 / 25 | Maximum Turbidity (NTU) | 1 |
| Maximum Feed Temperature (°F / °C) | 85 / 29 | Maximum Free Chlorine (ppm) | 0 |
| Maximum Feed Temperature (°F / °C) | 40 / 4 | Maximum TDS (ppm) | < 45,000 |
| Maximum Ambient Temperature (°F / °C) | 120 / 49 | Maximum Hardness (gpg) | 1 |
| Minimum Ambient Temperature (°F / °C) | 40 / 4 | Maximum pH (continuous) | 11 |
| Maximum Feed Pressure (psi / bar) | 65 / 4 | Minimum pH (continuous) | 2 |
| Minimum Feed Pressure (psi / bar) | 45 / 3 | Maximum pH (cleaning 30 minutes) | 13 |
| Maximum Operating Pressure (psi / bar) | 1,000 / 69 | Minimum pH (cleaning 30 minutes) | 1 |
| Maximum Feed Silt Density Index (SDI) | < 3 |
E. System pressure is variable due to water conditions. Permeate flow will increase at a higher temperature and will decrease at a lower temperature.
