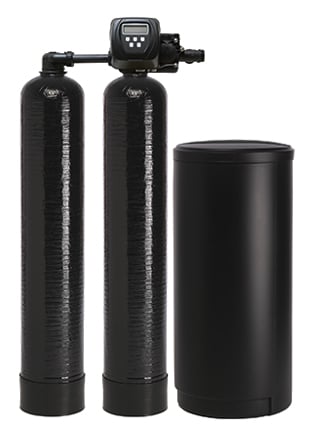

TS−SERIES TWIN WATER SOFTENING SYSTEMS

AXEON® TS–Series Twin Water Softening Systems produce an uninterrupted service of softened and treated water 24 hours a day, seven days a week from hard municipal or well water sources. These water softener systems offer softening capacities between 15,000 and 360,000 grains with flow rates up to 50 GPM. One added benefit is the system’s flexibility so that each of the tanks utilize 100% of their capacity.


BENEFITS
  • Unlimited Supply of Soft Water 24/7
  • Effectively Removes Water Hardness
  • Softens Water Using Minimal Salt and Water
  • Extends Life of Fixtures, Plumbing and Appliances
FEATURES
  • Solid-State Microprocessor Twin Control
  • LED Backlit Display Screen
  • Meter Monitors and Self-Adjusts Regeneration Cycles Based on Water Use Trends
  • Easily Programmed for Optimum Performance
  • Extended Lithium Battery 48-Hour Power Backup
  • Flexible “Adjustable Cycle Sequence” Programming — Saves Salt and Water
  • Day-Of-The-Week Controls
  • Regeneration Can Be Triggered Immediately
  • Advanced History and Diagnostic Screens
  • Integrated Pretreatment Lockout Contacts
  • Brine Tank With Float Assembly and Salt Grid
  • Heavy-Duty Riser Pipe With Upper and Lower Screens
  • 8% High Capacity Cross-Link Ion Exchange Resin
  • Service Alarms
  • Optional AC 220V Adapter– (P/N:212200)
APPLICATIONS
  • Residential
  • Convenience Stores
  • Restaurants and Bars
  • Power Washing
  • Laundromats
  • RO Pretreatment
  • Car Washes
  • Boiler Feeds
TECHNICAL SPECIFICATIONS
Part Number 212158 212159 212160 212161 212217 212162 212163
Model TS-50-0064-100 TS-50-0080-100 TS-50-0120-100 TS-50-0160-100 TS-51-0200-125 TS-51-0240-125 TS-52-0360-150
Valve Mode Clack i510 Clack i510 Clack i510 Clack i510 Clack i512 Clack i512 Clack i515P
Valve Type Meter Meter Meter Meter Meter Meter Meter
Auxiliary Relay Included Yes Yes Yes Yes Yes Yes Yes
Voltage (2) 110 V (2) 110 V (2) 110 V (2) 110 V (2) 110 V (2) 110 V (2) 110 V
Plumbing Connection Bypass / 1″ MPT Bypass / 1″ MPT Bypass / 1″ MPT Bypass / 1″ MPT Bypass / 1.25″ MPT Bypass / 1.25″ MPT 1.5″ MPT
Drain Connection 5/8″ Barb 5/8″ Barb 5/8″ Barb 5/8″ Barb 5/8″ Barb 1″ MPT 1.5″ MPT
Media Tank Size / Color (2) 9×48 Black (2) 12×52 Black (2) 16×53 Black (2) 16×65 Black (2) 18×65 Natural (2) 21×62 Natural (2) 24×72 Natural
Approximate Capacity 64,000 GPG 80,000 GPG 120,000 GPG 160,000 GPG 200,000 GPG 240,000 GPG 360,000 GPG
Media Type / Pounds Gravel 20 Lbs Gravel 40 Lbs Gravel 80 Lbs Gravel 80 Lbs Gravel 100 Lbs Gravel 200 Lbs Gravel 300 Lbs
Media Type/ Cubic Feet 8% Cation Resin 2 CF 8% Cation Resin 4 CF 8% Cation Resin 6 CF 8% Cation Resin 8 CF 8% Cation Resin 10 CF 8% Cation Resin 12 CF 8% Cation Resin 18 CF
Media Funnel Included Media Loaded Media Loaded Media Loaded Media Loaded Yes Yes Yes
Brine Tank Size / Color 16×33 Black 18×33 Black 18×40 Black 18×40 Black 24×40 Black 24×40 Black 24×50 Black
Design Service GPM 1-8 2-15 4-25 4-25 5-30 7-30 10-39
Estimated Peak GPM 15 23 25 25 34 34 50
DLFC Backwash GPM 2.2 3.2 6.5 6.5 7.5 11 15
Height Inches 57″ 61″ 61″ 74″ 75″ 77″ 87″
Weight Dry / Pounds 195 Lbs 325 LBS 515 Lbs 660 Lbs 890 Lbs 1125 Lbs 1730 Lbs

Note: Manufacturer recommends the use of coarse salt in these water softeners. These water softeners are not intended to be used for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
