CC−SERIES CATALYTIC CARBON WATER FILTRATION SYSTEMS

AXEON® CC–Series Catalytic Carbon Water Filtration Systems use granulated micro-porous catalytic carbon to reduce Chlorine, Chloramines, heavy metals, organic compounds and unwanted odors and tastes. These systems are designed for reliability, minimal maintenance, comply with all industry standards and can efficiently treat municipal and well water sources.


FEATURES

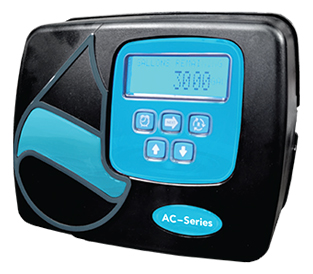

  • Solid-State Microprocessor Control
  • Led Backlit Display Screen
  • Meter Monitors and Self-Adjusts Regeneration Cycles Based on Water Use Trends
  • Easily Programmed for Optimum Performance
  • Extended Lithium Battery 48-Hour Power Backup
  • Flexible “Adjustable Cycle Sequence” Programming — Saves Water
  • Day-Of-The-Week Controls
  • Regeneration Can Be Triggered Immediately
  • Advanced History and Diagnostic Screens
  • Integrate Pretreatment Lockout Contacts
  • Heavy-Duty Fiberglass Tank
  • Heavy-Duty Riser Pipe With Upper and Lower Screens
  • Catalytic Granulated Activated Carbon
  • Service Alarms
  • Optional AC 220V Adapter– (P/N:212200)
  • Optional AC 220V Adapter for AC-43-3672-200 – (P/N:212199)

SPECIFICATIONS

  • Reduces Chlorine, Heavy Metals, Organics, Tastes and Smells
  • Metering Valve Reduces Waste Water
  • Can Extend the Life of Other Equipment, Fixtures, and Appliances

TECHNICAL SPECIFICATIONS

Part Number 212201 212202 212203 212204 212213 212205 212206 212207 212208
Model CC-40-0948- 100 CC-40-1252- 100 CC-40-1653- 100 CC-40-1665- 100 CC-41-1865- 125 CC-41-2162- 125 CC-41-2472- 125 CC-42-3072- 150 CC-43-3672- 200
Valve Mode Clack i510 Clack i510 Clack i510 Clack i510 Clack i512 Clack i512 Clack i512 Clack i515 Clack i520Q
Valve Type Meter Meter Meter Meter Meter Meter Meter No Meter No Meter
Auxiliary Relay Included Yes Yes Yes Yes Yes Yes Yes Yes Yes
Voltage 110 V 110 V 110 V 110 V 110 V 110 V 110 V 110 V 110 V
Plumbing Connection Bypass / 1" MPT Bypass / 1" MPT Bypass / 1" MPT Bypass / 1" MPT Bypass / 1.25" MPT Bypass / 1.25" MPT Bypass / 1.25" MPT 1.5" FPT 2" FPT
Drain Connection 5/8" Barb 5/8" Barb 1" MPT 1" MPT 1" MPT 1" MPT 1.5" MPT 1.5" MPT 1.5" FPT
Media Tank Size / Color 9x48 Black 12x52 Black 16x53 Black 16x65 Black 18x65 Natural 21x62 Natural 24x72 Natural 30x72 Natural 36x72 Natural
Media Type / Pounds Gravel 10 Lbs Gravel 20 Lbs Gravel 40 Lbs Gravel 40 Lbs Gravel 50 Lbs Gravel 100 Lbs Gravel 150 Lbs Gravel 250 Lbs Gravel 500 Lbs
Media Type/ Cubic Feet Catalytic GAC 1 CF Catalytic GAC 2 CF Catalytic GAC 3 CF Catalytic GAC 4 CF Catalytic GAC 5 CF Catalytic GAC 7 CF Catalytic GAC 10 CF Catalytic GAC 15 CF Catalytic GAC 20 CF
Media Funnel Included Media Loaded Media Loaded Media Loaded Media Loaded Yes Yes Yes Yes Yes
Design Service GPM 1-2 2-4 3-6 4-8 5-10 7-14 10-20 15-30 21-40
Estimated Peak GPM 13 20 30 30 30 30 30 60 120
DLFC Backwash GPM 4.2 7.5 13 13 17 25 30 50 70
Height Inches 57" 61" 61" 74" 75" 77" 85" 94" 98"
Weight Dry / Pounds 75 Lbs 115 LBS 190 Lbs 230 Lbs 300 Lbs 410 Lbs 625 Lbs 1000 Lbs 1450 Lbs

These systems are not intended to be used for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
